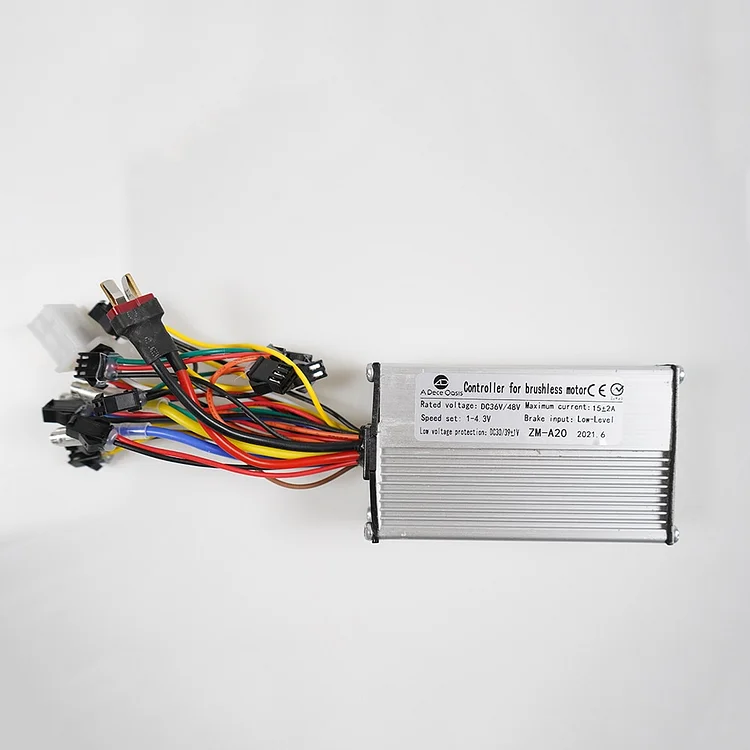

ADO A16 A20 A26 Electric Bicycle Controller 350W Brushless DC Motor Controller For Electric Bicycle Accessories Original
Sold 15 only 999999+ item(s) left
€44.99
${saveText.replace('{off_ratio}',
saveType == 'percent'
? data.off_ratio + '%'
: `
`;
}()}
Color:
ADO Controller
${data.targetOption}
Ships From:
China
${data.targetOption}
Quantity
Share the love
Free worldwide shipping
Free returns
Sustainably made
Secure payments
Description
Brand Name: A Dece Oasis
Origin: CN(Origin)
Type: Controller
Type1: ADO A16 A20 A26 Controller
Type2: 350W Brushless DC Motor Controller
Type3: ADO Electric Bicycle Accessories
Suitable for: ADO A16 A20 A26 Ebike
Controller: ADO Controller
Specification:
Name : ADO Controller
Casing material: Aluminium
Rated voltage: DC 36V/48V
Rated power: 350W
Current: 15-17A
Controller function introduction
Hybrid drive mode:
Low speed assist gear. Pedal to 6km/h will be motor assist.Max speed 15km/h.
High speed assist gear. Pedal to 6km/h will be motor assist. Max speed 25km/h.
High speed electric gear. Pedal to 6km/h and then can turn the throttle lever to adjust the speed. Max speed 25km/h(can unlock speed to 35km/h).
Pedal Assist mode:
No power assist gear. Only by the pedal drive.
Low speed assist gear. Pedal to 6km/h will be motor assist. Max speed 15km/h.
Medium speed assist gear. Pedal to 6km/h will be motor assist. Max speed 20km/h.
High speed assist gear. Pedal to 6km/h will be motor assist. Max speed 25km/h.
How to shift Hybrid Drive and Pedal Assist mode ?
From the Hybrid Drive change to the Pedal Assist Mode:
Power off state. Pinch the brake and press the Power button for 3 seconds to turn on the ebike. waiting 10 seconds before release the brake. Complete the mode switch. The throttle lever will not work.
From the Pedal Assist change to Hybrid Drive Mode :
Power off state. First turn the throttle lever to the end and pinch the brake at the same time. Then turn on the ebike. 10s later, release the brake and throttle lever. Complete the mode switch.
Applicable model: ADO A16 A20 A26 electric bicycle
Packing list : 1pcs ADO controller
Controller installation video link：https://www.youtube.com/watch?v=ibz6F3QRIqs
